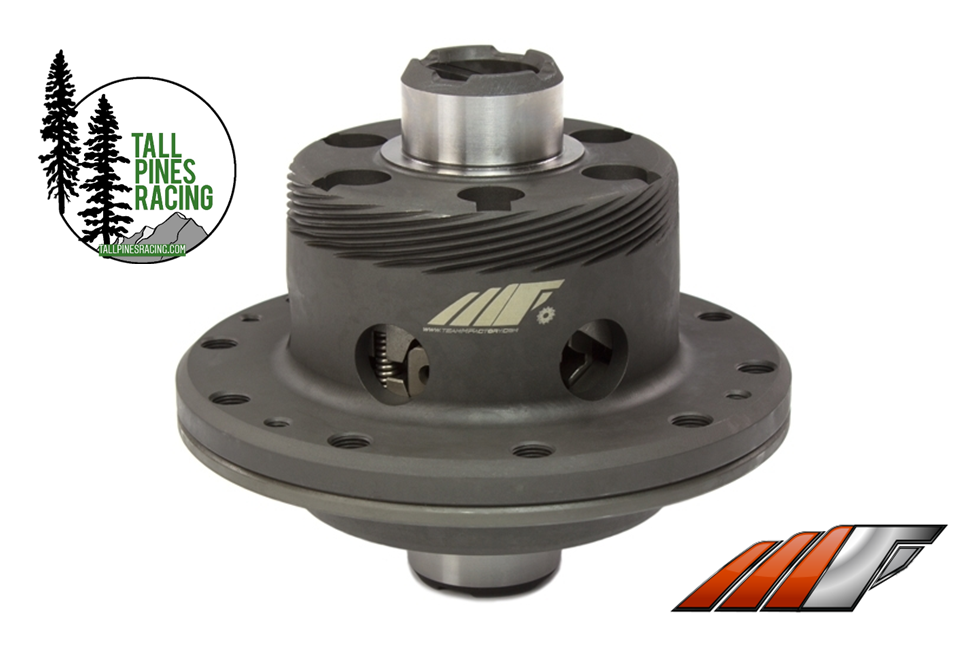

    MFactory V2 Metal Plate LSD's Honda/Acura
    MFactory V2 Metal Plate LSD's Honda/Acura
    MFactory V2 Metal Plate LSD's Honda/Acura
    MFactory V2 Metal Plate LSD's Honda/Acura
    MFactory V2 Metal Plate LSD's Honda/Acura
    MFactory V2 Metal Plate LSD's Honda/Acura

    MFactory V2 Metal Plate LSD's Honda/Acura

    Regular price $1,468.00


    OPTION 1: B16A, B17A, B18A/B Cable/Hydro (for 110mm ID Ring Gear) MF-TRS-10B16C

    OPTION 2: B18C/B16B GSR/ITR/CTR Hydro (for 116.8mm ID Ring Gear) MF-TRS-10B18C

    OPTION 3: K20/K24 FWD Civic/RSX/TSX/Accord (for all K Series FWD models) MF-TRS-10K20C

    The MFactory V2 metal plate LSD has an Increased Number of Thinner Plates, allowing for more 33% more lock with LESS NOISE!

    • Made from imported Japanese SAE 4320 Steel
    • Forged, Double Tempered and Super Sub-Zero treated for unsurpassed toughness
    • Advanced Shot Peening technology increases surface hardness
    • Only the highest quality Brighton-Best Hardware is used
    • Coil Spring preload system ensures minimal powerloss and maximum response, allowing preload settings from 0-85lbs
    • Lower initial preload ensures maximum durability and chatter-free operation
    • Fully rebuildable with a choice of different cam angles
    • New v2 Metal Plate LSD available, utilizing our 2nd Generation Active Friction™ Type-SS Plates, reducing NVH by as much as 50%
    • Fully adjustable lock capacity; 20-Plate: 20%/40%/60%/80%/100% / 16-Plate: 25%/50%/75%/100% / 12-Plate: 33%/66%/100%

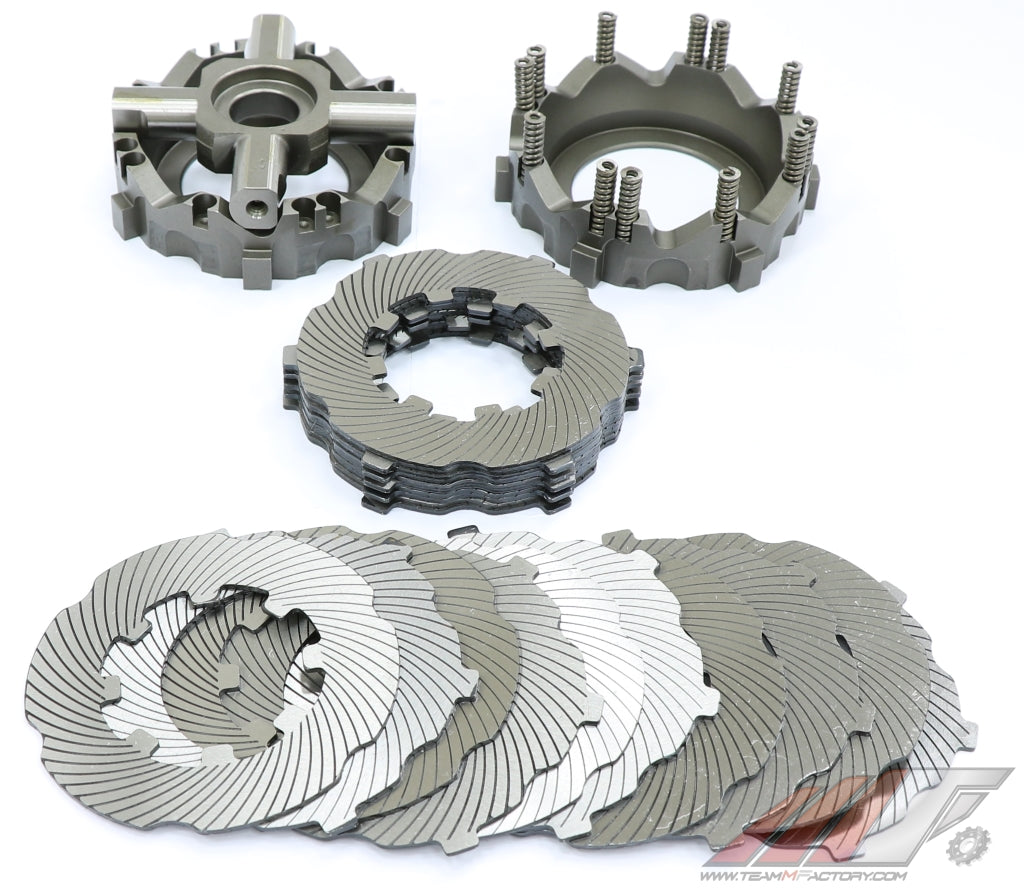

     v2 Metal Plate LSD

    Applications for  Honda (16-Plate). A commonly known issue with Plate type LSD's is the associated NVH (noise, vibration, harshness) during low speed driving, especially noticeable on a daily driver. With the new MFactory v2 Metal Plate LSD, which uses their new 2nd Generation Active Friction™ Type-SS Plates (originally developed for their competition Touring Cars), NVH is reduced by as much as 50% with Thinner Plates, allowing for more 33% more lock with LESS NOISE!

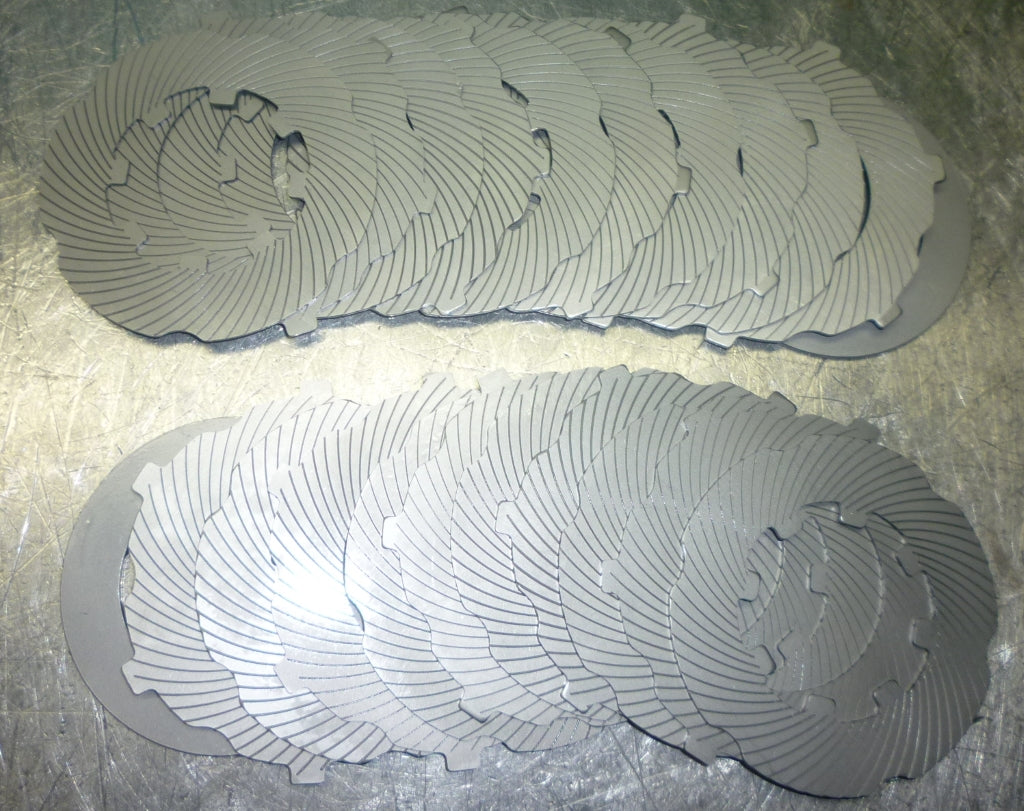

    Low-Cost Maintenance Parts
    Unlike with a Helical LSD, the Metal Plate LSD will require regular maintenance to keep performance at its peak. Replacement pre-load springs & plates are always in stock and offered at an affordable price.


    Due to the nature of For Race Use Only products, MFactory Competition Products will provide a limited lifetime warranty (excluding maintenance parts) for all Metal Plate LSD's to be free of defects in materials and workmanship upon receipt of product and professional installation. Parts returned must be determined by MFactory Competition Products to be defective before any warranty credit or replacement is issued.
